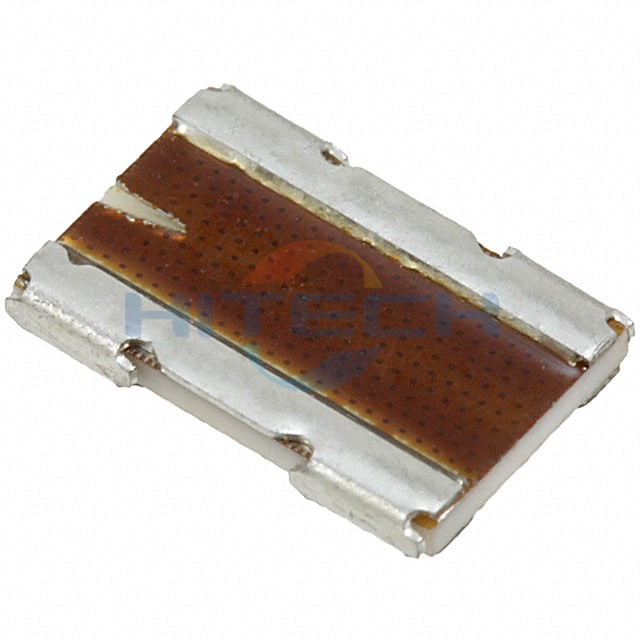

Buy Y08560R01000J0W with confidence from Hitech-Semi.com, 1 Year Warranty
| Part Number | Y08560R01000J0W |
|---|---|
| Manufacturer | Vishay Foil Resistors (Division of Vishay Precisio |
| Description | RES 0.01 OHM 1W 2516 WIDE |
| ead Free / RoHS StatusL | Lead free / RoHS Compliant |
| In stock 100000+ pcs | |
| Reference Price (In US Dollars) |
|
| Type | Description |
|---|---|
| Part Number: | Y08560R01000J0W |
| Manufacturer: | Vishay Foil Resistors (Division of Vishay Precisio |
| Description: | RES 0.01 OHM 1W 2516 WIDE |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Quantity Available: | 0 |
| Data sheet: | Y08560R01000J0W PDF |
| Category: | Resistors |
| Filter: | Chip Resistor - Surface Mount |
| Composition: | Metal Foil |
| Failure Rate: | - |
| Features: | Current Sense, Moisture Resistant, Non-Inductive |
| Height - Seated (Max): | 0.040" (1.02mm) |
| Number of Terminations: | 4 |
| Operating Temperature: | -55°C ~ 150°C |
| Package / Case: | Wide 2516 (6440 Metric), 1625 |
| Power (Watts): | 1W |
| Product Status: | Active |
| Ratings: | - |
| Resistance: | 10 mOhms |
| Size / Dimension: | 0.160" L x 0.250" W (4.06mm x 6.35mm) |
| Supplier Device Package: | SMD |
| Temperature Coefficient: | ±2ppm/°C |
| Tolerance: | ±5% |
| Image | Part Number | Description / PDF | Quantity | Request For Quotation |
|---|---|---|---|---|
 |
RES 0.2 OHM 1W 2516 WIDE |
1702 |
|
|
 |
RES 0.01 OHM 1/2W 2516 WIDE |
2798 |
|
|
 |
RES 0.1 OHM 1/2W 2516 WIDE |
3631 |
|
|
 |
RES 0.8 OHM 1/2W 2516 WIDE |
5332 |
|
|
 |
RES 0.2 OHM 1/2W 2516 WIDE |
8722 |
|
|
 |
RES 0.25 OHM 1/2W 2516 WIDE |
9059 |
|
|
 |
RES 0.04 OHM 1/2W 2516 WIDE |
2141 |
|
|
 |
RES SMD 1 OHM 0.5% 1W 2516 WIDE |
2779 |
|
|
 |
RES 0.016 OHM 1/2W 2516 WIDE |
5945 |
|
|
 |
RES SMD 1.5 OHM 1/2W 2516 WIDE |
6329 |
|
|
 |
RES 0.4 OHM 1/2W 2516 WIDE |
8500 |
|
|
 |
RES 0.18 OHM 1/2W 2516 WIDE |
1851 |
|
|
 |
RES SMD 3.3 OHM 1/2W 2516 WIDE |
2937 |
|
|
 |

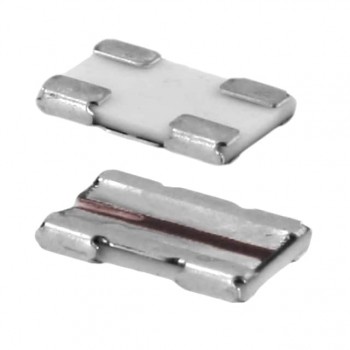

RES 0.619 OHM 1/2W 2516 WIDE |
